Klima Management

Präzise Sensoren und Energiezähler. Netzteile und Multi-Standard-Schnittstellen.

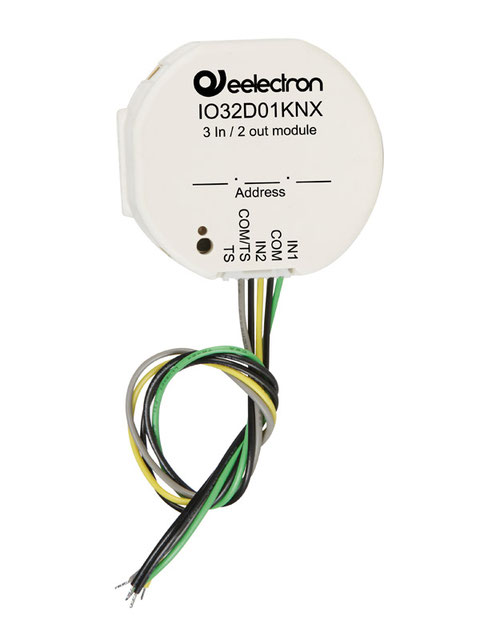

Code:

IO32D01KNX

This module includes:

• 2 digital inputs


• 1 analog input


• 2 relay output (bistable) Digital inputs are intended to be connected to free potential contacts and can interface sensors, traditional buttons, etc; they can be used to on/off commands, dimming, shutter control, scene recall and control, sequences of 3 objects. Analog input, can manage one temperature probe (with On/Off threshold) or one thermostats to control heating and cooling equipments, valves, 2 and 4 pipes fan coils; etc.. Analog input, alternatively to the temperature sensor, can manage a Infrared Receiver (IRX) in order to forward to the bus up to 8 channel coming from a Infrared Remote Control (IRC) with on/off commands, scenes, sequences of 2 objects, dimmer and shutter. Outputs include switching function with timed delays, staircase function, scene recall, lock or logic function.


• Each output can be configured independently for load control (2 independent channels) Device 2 outputs on board can be configured:


• Each output can be configured independently for ON / OFF or continuous switching (PWM) for Electric valves (solenoid actuators) (2 independent channels) • Outputs can be configured in pairs for the management of roller shutters and blinds; (1 channel) The device is equipped with KNX communication interface.

Code:

AD84C01KNX

Code:

GT00A03KNX

The Inwall Glass Thermostat GT00A03KNX is an EIB/KNX wall mounting device designed for HVAC applications in Home and Building installations (i.e. offices, hospitals, hotels, private houses, etc..).

The Glass on the front side displays the following information:

• Actual temperature in °C
•  Actual setpoint
•  Fan coil speed
• HVAC mode status
•  Heating and cooling status
•  Status of controlled heating / cooling equipments

Control elements available on the front are:

• capacitve button to increase the temperature setpoint
• A capacitive button to decrease the temperature setpoint
• 1 capacitive button to set the HVAC mode
• 1 capacitve button to set heating or cooling mode

The device configuration for commissioning in terms of physical address, group addresses and parameters is done with ETS ( Engineering Tool Software) through a download of the Application Program.

GT00A03KNX is intended to be used in rectangular 3 module box mounted in vertical.

Device is equipped with KNX communication interface.
