System Management

Präzise Sensoren und Energiezähler. Netzteile und Multi-Standard-Schnittstellen.

Code:

PM30D02KNX

This Energy-meter provides the essential measurement capabilities required to monitor a three phase electrical installation.

• Three-phases digital energy meter with connection by CT …/1 A up to 2000/1 A or by CT …/5 A up to 10.000/5 A 0.01-1(6) A – 2 Tarif
• LCD display and 3 push-button keys (to read Energies, V, I, PF, F, P, Q and to configure some parameters)
• 1 Push button and 1 LED dedicated to KNX.
• Display with 8 digits.
• Self supplied (by the input voltage itself).
• 1 S0 pulse output proportional to Active Imported KWh

Device is intended to be installed on DIN rail.

Code:

PM30D01KNX

• This Energy-meter provides the essential measurement capabilities required to monitor a three phase electrical installation.
• Direct connected (up to 63 A)
• LCD display and 3 push-button keys (to read Energies, V, I, PF, F, P, Q and to configure some parameters)

• 1 push botton and 1 LED dedicated to KNX.

• Display with 8 digits.
• Self supplied (by the input voltage itself).

Device is intended to be installed on DIN rail.

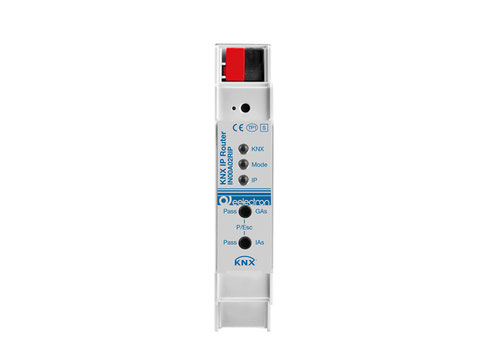

Code:

IN00A02RIP

With the KNX / IP router, a bidirectional communication among more KNX bus lines is possible through LAN networks. If the device is connected to a PC with an appropriate software (for example, ETS), it can also be used like a programming interface for KNX bus system. The IP address can be dynamically assigned via a DHCP server, or manually configured using ETS parameters. Communications are made in accordance with KNXnet / IP specifications. During the data transfer, it is possible to configure a filter table and keep up to 150 messages in the “buffer” memory.

Code:

IN00A03IPI

The interface KNX / IP is used to connect a PC with appropriate software (eg ETS) to the LAN, for programming and / or supervision of the KNX bus system. The IP address can be dynamically assigned via DHCP server or manually configured using parameters ETS. Communication takes place in accordance with the specifications KNXnet / IP. The device, for the operation, needs an extra nutrition.
