New Reference in Bellinzona (CH) – public lighting management for one of the main street of this beautiful city including scenarios and regulation through
eelecta’s touch panel, in/out actuators and DMX interface.
This project was made in collaboration with the lighting designer Stefano Dall’Osso and his team. (http://www.stefanodallosso.it)
DIN 1 OUT 700 W – UNIVERSAL DIMMER –
MASTER & SLAVE
DIN 1 OUT - 700 W - UNIVERSAL DIMMER
DIN 1 OUT 700 W - UNIVERSAL DIMMER

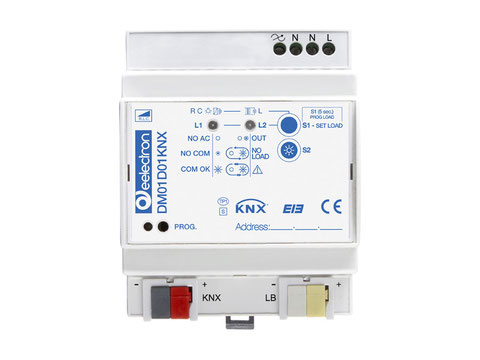

DM01D01KNX - DM01D01ACC
DM01D01KNX is a KNX power dimmer 1-channel acting as a Master Dimmer to which you can connect up to two Slave Modules (cod. DM01D01ACC) with identical characteristics to the Master power dimmer and connected to it by a local two wires bus.
Dimmer DM01D01KNX can be used in one of the following configurations:
The three channels are independent and can therefore operate on different phases of the same three phase systems respecting the limit of 230Vac between phase and neutral.
The product is intended for installation on DIN rail in electrical distribution cabinets.

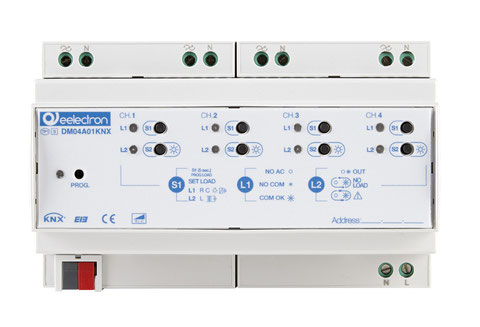

UNIVERSAL DIMMER 4 CHANNELS X 300W
DM04A01KNX is a KNX universal power dimmer 4-channels with automatic identification of load type and with settable parameters to optimize control of different lamps like LED, incandescent and halogen, CFL dimmable lights, low voltage lamps with electronic or ferromagnetic transformer.
KNX/DALI GATEWAY Tunable White
The DALI Gateway forms the interface between a KNX installation and a digital DALI (Digital Addressable Lighting Interface) lighting system. The DALI Gateway allows the switching and dimming of a maximum of 64 lights with a DALI operating device (e.g. electronic ballast).Up to 6 different addressing types of the DALI Gateway allow group-orientated and individually- address control of DALI lights via KNX telegrams.This allows the integration of room-specific light control, for example, of open-plan offices, multipurpose spaces, production facilities, training and presentation rooms or showcases into the higher-level KNX building management. Depending on the configuration, up to 32 independent DALI groups are available for group addressing. For alternative control, these can be supplemented with 64 individually-addressable DALI device channels, as necessary. Optionally, master control of all connected DALI components is possible (broadcast). This means that there is no need to commission DALI, meaning that lighting systems with few functions can be started up quickly and easily (simplified configuration without DALI commissioning). The DALI Gateway is supplied completely via the mains voltage connection and makes the DALI system voltage (typ. DC 16 V) available. The device is designed for mounting on DIN rails.
